Band power – Topomap

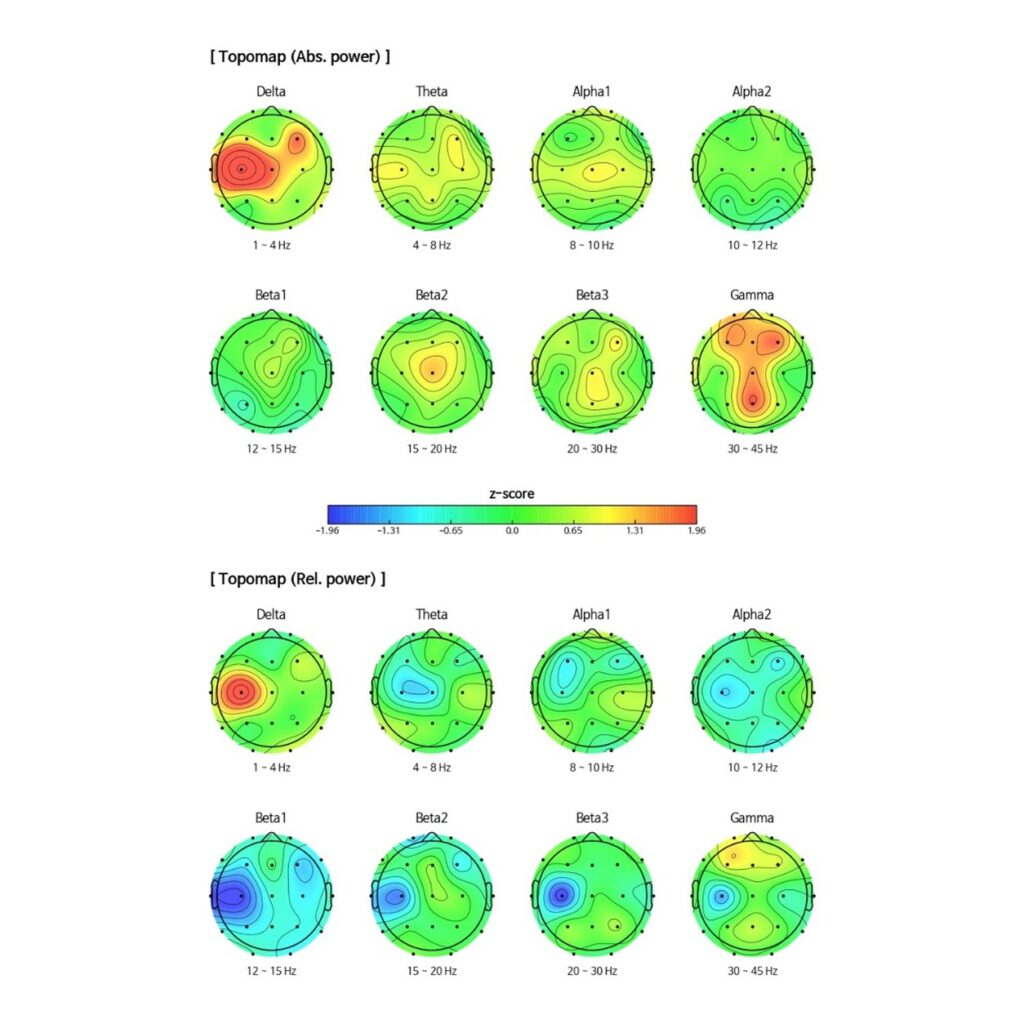

In power spectral density(PSD) 2D map, topomaps of absolute and relative power in 1 Hz bins (1 – 45 Hz) as well as each frequency band are presented. Absolute power is the sum of the component powers for each frequency band. Relative power is the absolute power in a specific frequency band divided by the total power. It is advisable to compare relative power with absolute power, since absolute power reflects the individual differences due to variations in brain tissue. This feature provides absolute and relative power based on six brain regions (prefrontal, frontal, left temporal, right temporal, central, parietal, and occipital). The power spectra for each of the 19 channels are shown in the following feature, PSD spectrum (below).
Band1Hz bin(Absolute)1Hz bin(Relative)
